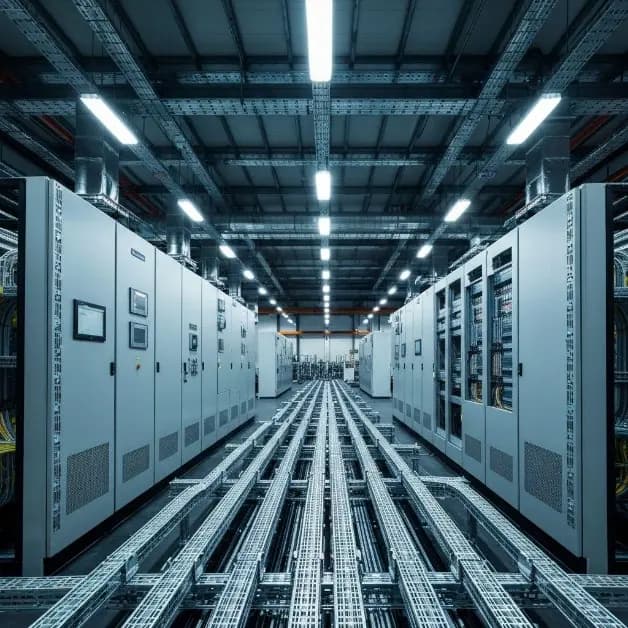

Electrical switchgear room with overhead cable trays

Electrical & Industrial Equipment

Reliable Equipment for Industrial Projects

Cable trays · Lighting · Transformers · Hoists · Winches

Dar Almahireen Technical Services L.L.C. supplies electrical and industrial equipment for oil & gas, marine, infrastructure and manufacturing projects. Our product range includes cable management systems, industrial lighting, transformers and electric lifting equipment, with options to meet project-specific requirements.

Explore the Range

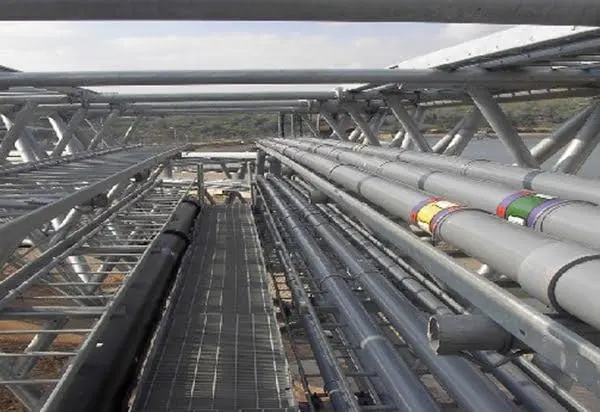

01 / GRP/FRP Cable Trays

Corrosion-Resistant Cable Management

We supply GRP/FRP cable trays and ladder systems for industrial cable installations. Available configurations include straight lengths, bends, tees, covers, couplers and fixing accessories for demanding environments.

Applications: Oil & gas · Marine facilities · Chemical plants · Industrial infrastructure

Typical specifications

Parameter	Product range
Type	Ladder / Perforated / Solid-bottom
Width × height	Approx. 100–900 mm × 50–150 mm
Standard length	3–6 m
Material	Glass-fibre-reinforced polyester or vinyl ester
Temperature	Selected systems rated approximately −40°C to +90°C
Standard	IEC 61537; project-specified fire-performance requirements

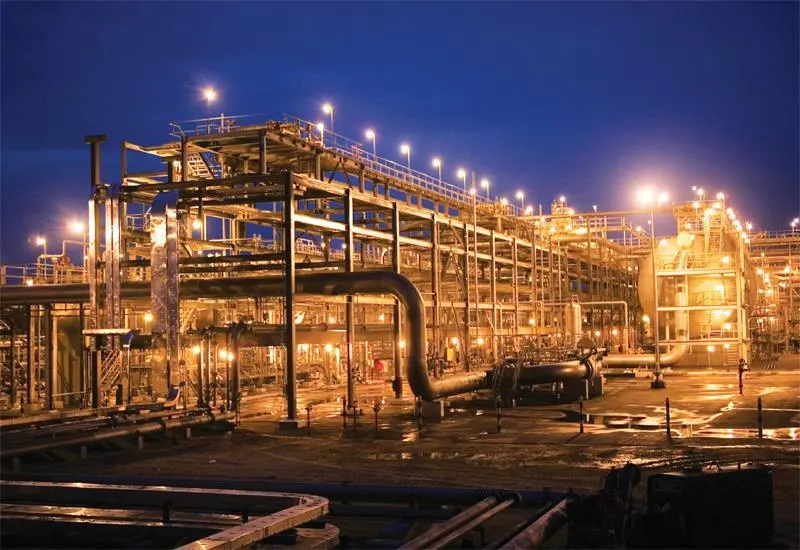

02 / Industrial Lighting

Lighting for Industrial Environments

Our industrial lighting range includes LED floodlights, high-bay lights and area lighting for indoor and outdoor facilities. Hazardous-area lighting configurations can be considered where specified by the project.

Applications: Refineries · Industrial plants · Warehouses · Outdoor facilities

Typical specifications

Parameter	Product range
Lighting type	LED floodlight / High-bay / Area light
Power rating	Approx. 50–400 W
Input voltage	Selected models: 100–277 V AC
Protection	IP65–IP66 across selected models
Colour temperature	Approx. 3,000–6,500 K
Hazardous-area options	ATEX/IECEx-certified models, where required

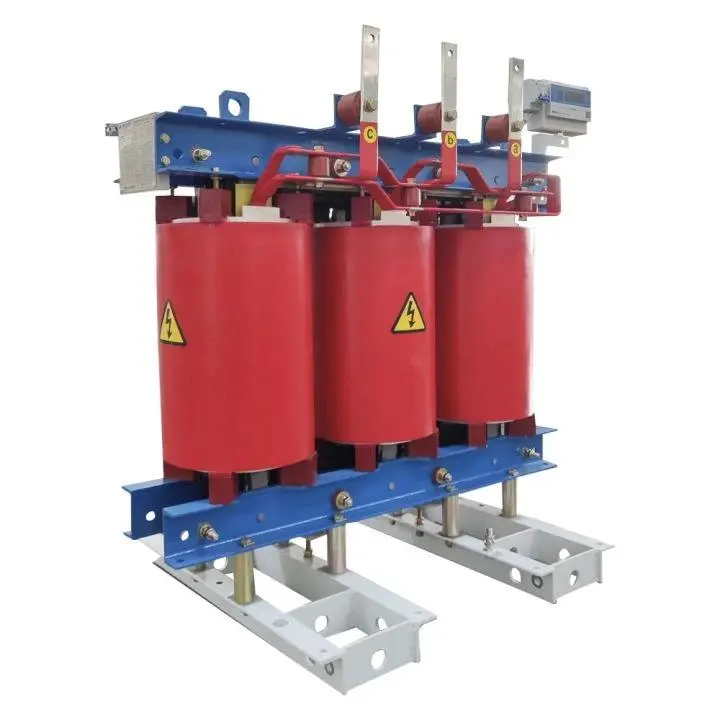

03 / Transformers

Industrial Power Distribution

We supply transformers for industrial facilities, utilities and infrastructure projects. Dry-type and oil-immersed configurations can be selected according to the required capacity, voltage and installation conditions.

Applications: Industrial plants · Utilities · Commercial facilities · Infrastructure

Typical specifications

Parameter	Product range
Transformer type	Dry-type / Oil-immersed
Rated capacity	Approx. 100–2,500 kVA
Primary voltage	Common project options: 11–33 kV
Secondary voltage	400–415 V and other specified outputs
Frequency	50 / 60 Hz
Applicable standard	IEC 60076 series

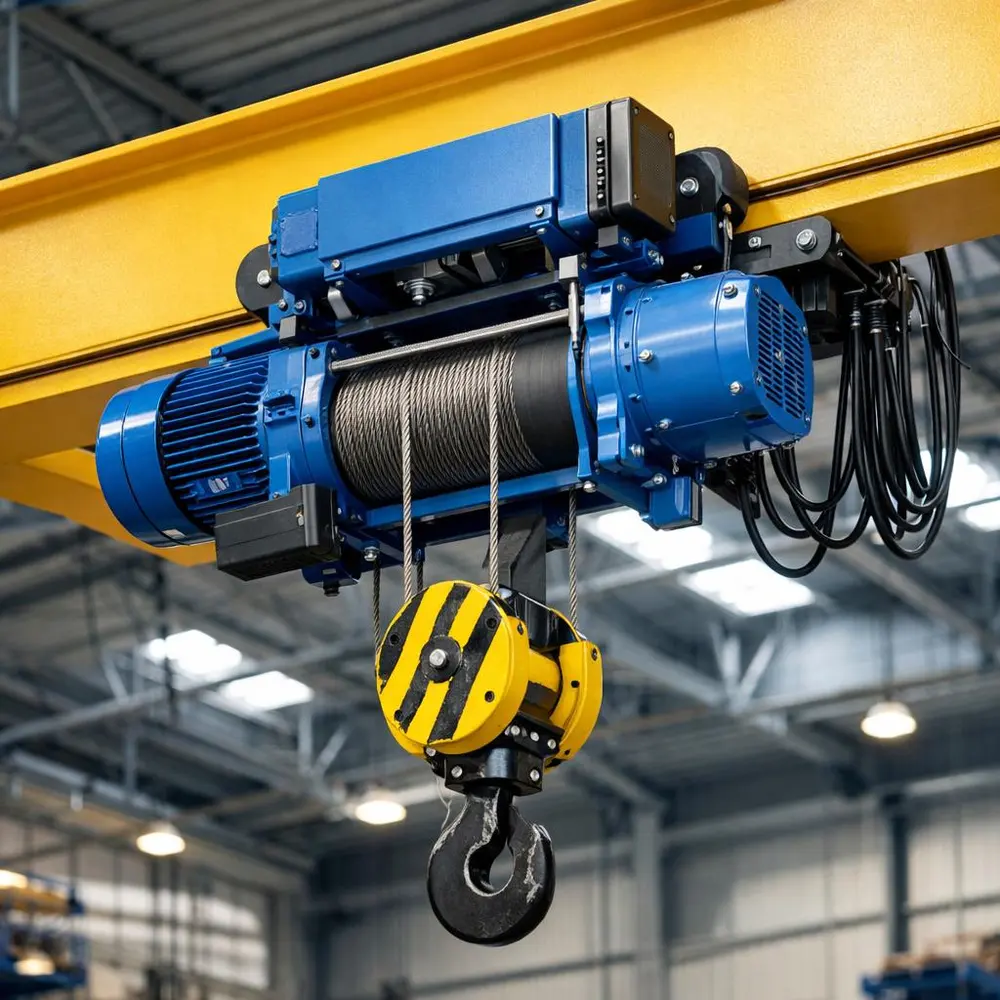

04 / Electric Hoists

Electric Lifting Solutions

Our electric hoist range supports lifting and material handling in workshops, warehouses and industrial facilities. Fixed and trolley-mounted wire-rope hoists are available in configurations suited to different lifting duties.

Applications: Manufacturing · Workshops · Warehouses · Industrial maintenance

Typical specifications

Parameter	Product range
Hoist type	Electric wire-rope
Lifting capacity	Approx. 0.5–20 tonnes
Lifting height	Approx. 6–30 m
Lifting speed	Approx. 2–8 m/min
Power supply	380–415 V, 3-phase, 50 Hz options
Configuration	Fixed / Trolley-mounted; duty class M3–M6 options

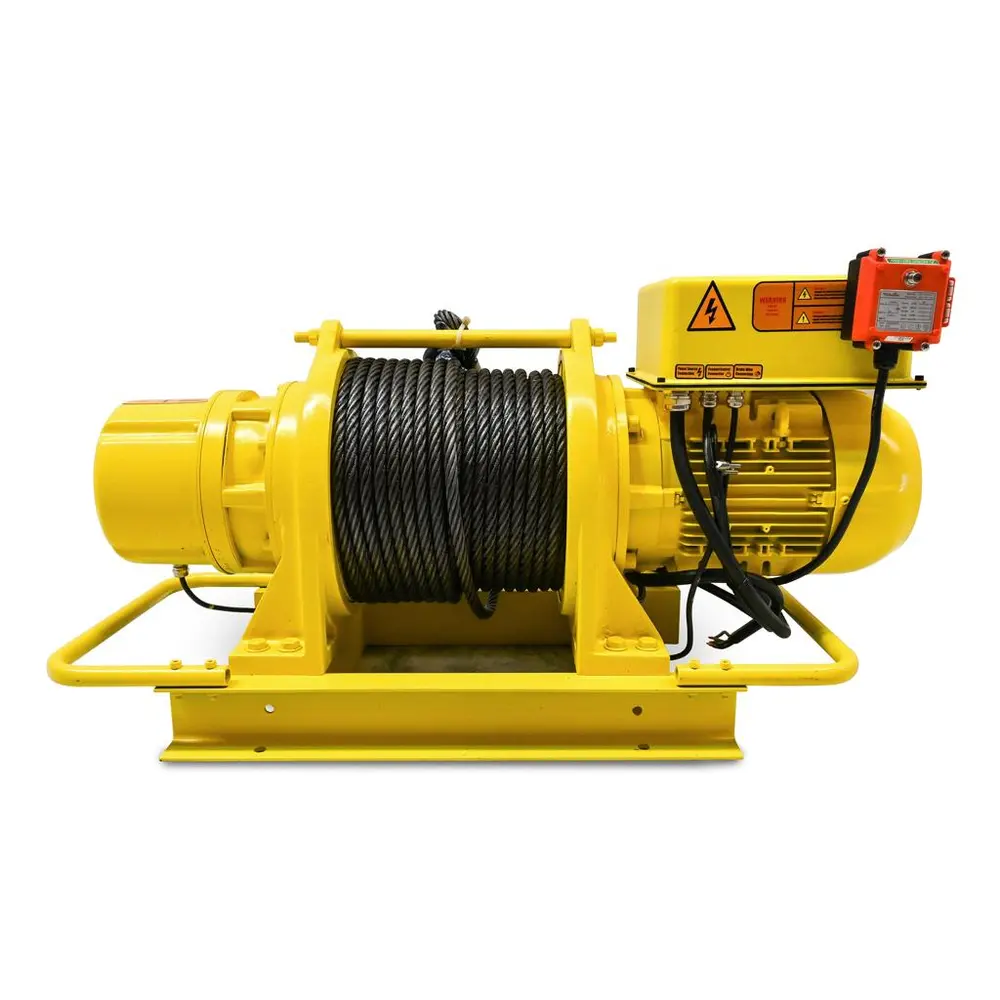

05 / Electric Winches

Industrial Pulling & Handling Equipment

We supply electric wire-rope winches for industrial pulling and equipment positioning. Winch configurations can be selected according to the required line pull, rope capacity, operating speed and installation arrangement.

Applications: Industrial handling · Equipment positioning · Marine operations · Construction

Typical specifications

Parameter	Product range
Winch type	Electric wire-rope drum winch
Rated line pull	Approx. 1–30 tonnes-force, first layer
Wire-rope diameter	Approx. 8–32 mm across selected configurations
Rope capacity	Approx. 50–500 m, drum-dependent
Power supply	380–415 V, 3-phase, 50 Hz options
Configuration	Base-mounted / Skid-mounted; application-specific controls

Applications

Industries We Serve

Oil & Gas
Marine & Offshore
Power Generation
Manufacturing
Construction
Industrial Infrastructure

Source Equipment for Your Project

Electrical & Industrial Equipment for Your Requirements

Share your product specifications, quantity and delivery requirements with Dar Almahireen Technical Services L.L.C. for a tailored technical and commercial quotation.

Enquire Now Schedule a Meeting
