Marine & Offshore Products

Products for Marine Infrastructure & Offshore Operations

Berthing protection · Anchoring · Floating fenders · Buoy systems

Dar Almahireen Technical Services L.L.C. supports marine and offshore product requirements covering berthing protection, vessel anchoring, offshore cargo handling and marine buoy systems.

Explore our product categories and share your project specifications for a suitable technical and commercial offer.

Explore the Range

01 / Marine Fenders · Berthing Protection

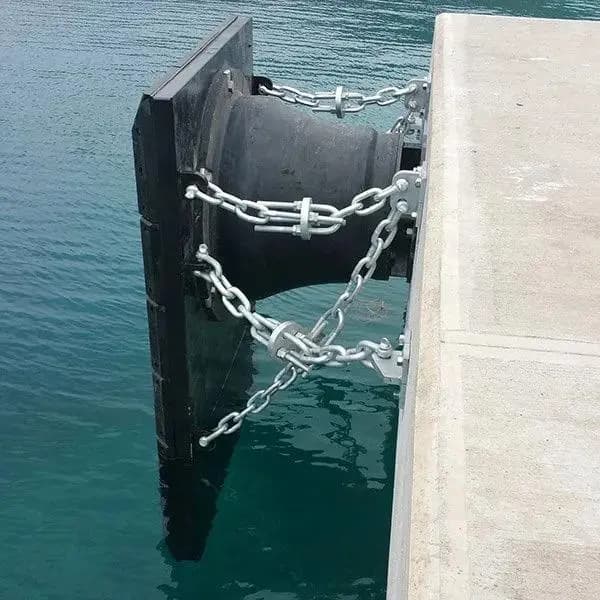

Marine Fender Systems

Marine fenders absorb vessel berthing energy and help control reaction forces on the vessel and berth structure.

Our product enquiries cover cell and cone fender systems, including compatible frontal panels, UHMW-PE facing and mounting accessories where required.

Applications: Ports, jetties, terminals and offshore berthing facilities.

Typical product range

Specification	Published catalogue range
Types	Cell and cone fenders
Nominal height	Approx. 300–3,000 mm across the referenced product families
Rubber hardness	Project-selected compound; 60 Shore A can be specified where available
Rated deflection	Model-dependent; cone designs commonly have rated deflection around 70%
Energy absorption	Model-specific; manufacturer performance curves required
Reaction force	Model-specific; manufacturer performance curves required
Accessories	Steel frontal panel, UHMW-PE pads, anchors and chains as specified

02 / Marine Anchor Chains · Anchoring & Mooring

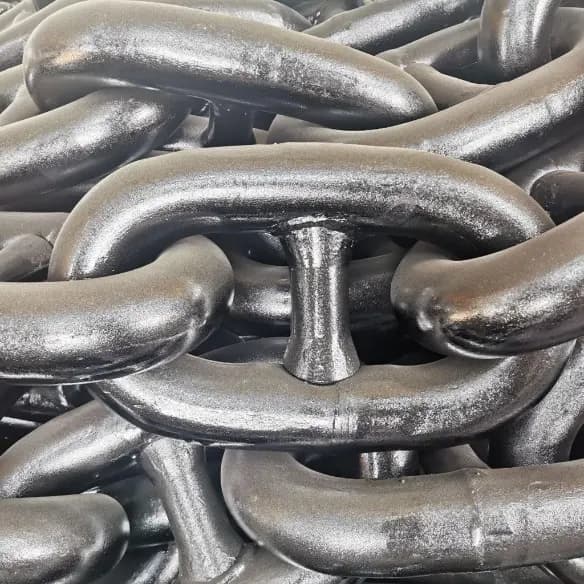

Marine Anchor Chains

Stud-link chains are used in vessel anchoring and suitable marine mooring arrangements. Chain diameter, grade and connecting components are selected according to the approved system requirements.

Applications: Commercial vessels and compatible marine anchoring systems.

Typical product range

Specification	Published catalogue range
Chain type	Stud-link anchor chain
Nominal diameter	Approx. 12.5–162 mm
Common grades	Grade 2 and Grade 3
Standard shot length	27.5 m; custom lengths subject to supply
Finish	Black-coated or galvanized options
Proof and breaking loads	Depend on diameter and grade
Dimensional standard	ISO 1704

03 / Floating & Foam-Filled Fenders · Offshore Operations

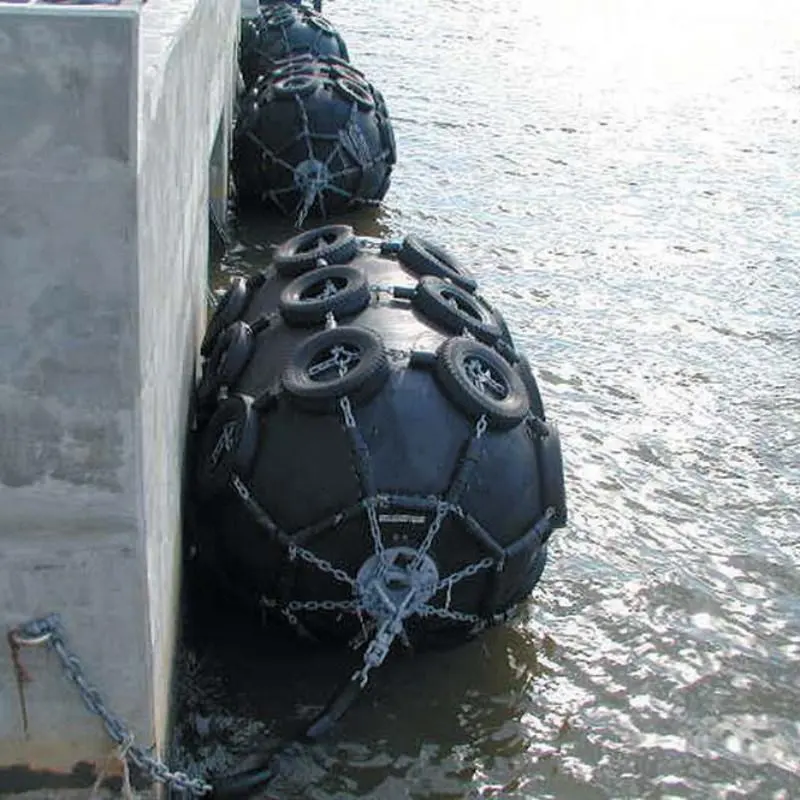

Flexible Protection for Offshore Operations

Floating fenders provide a protective interface between vessels or between a vessel and a marine structure. Unlike fixed cell and cone fenders, these systems float at the waterline and can accommodate changing contact positions.

Our specialist fender range includes pneumatic floating fenders and foam-filled fenders for suitable marine and offshore applications.

Typical technical specifications

Parameter	Pneumatic Floating Fender	Foam-Filled Fender
Nominal diameter	0.5–4.5 m	0.7–3.3 m
Nominal length	1.0–12.0 m	1.5–6.5 m
Energy absorption	6–6,473 kJ	26–2,422 kJ
Reaction force	64–7,984 kN	133–2,731 kN
Rated compression	60%	60%
Internal air pressure	50 kPa (0.5 bar), reference series	No pressurised air chamber
Construction	Reinforced rubber body with air chamber	Resilient foam core with protective outer skin
Accessories	Tyre-chain net or sling-type arrangement	End fittings and mooring arrangements

Pneumatic Floating Fenders

Air-filled floating fenders designed to absorb contact energy during compatible vessel-to-vessel and vessel-to-structure operations.

Foam-Filled Fenders

Floating fenders with a resilient foam core and protective outer skin. Their construction does not depend on maintaining internal pneumatic pressure.

04 / Marine Buoys · Mooring & Navigation

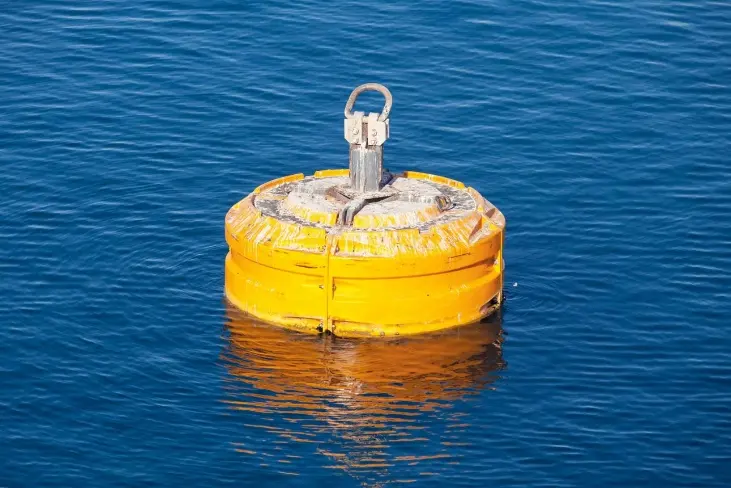

Marine Buoy Systems

Marine buoys provide floating support for mooring arrangements or mark navigational routes and marine hazards, depending on their design.

Product options: Mooring buoys and navigation buoys, with project-specific flotation, attachment and marking arrangements.

Applications: Ports, harbours, coastal waters and offshore marine operations.

Typical product range

Specification	Published catalogue range
Types	Mooring / Navigation
Mooring-buoy diameter	Approx. 1.9–4.4 m
Mooring-buoy net buoyancy	Approx. 2,500–45,500 kg
Mooring-buoy working load	Approx. 45–136 tonnes, model-dependent
Navigation-buoy diameter	Example product range: 1.4–2.6 m
Navigation features	Lantern, top mark, radar reflector and mooring assembly, as specified
Float construction	Material and internal flotation depend on the selected model

Applications

Marine & Offshore Applications

Ports & Terminals
Jetties & Berths
Commercial Vessels
Offshore Operations
Harbours & Coastal Waters
Marine Infrastructure

Request a Marine & Offshore Product

Find the Right Product for Your Project

Share your product type, required dimensions, quantity, project specification and delivery location with Dar Almahireen Technical Services L.L.C. We can review the enquiry against available supply options and the applicable technical documentation.

Request a Marine & Offshore Product Schedule a Meeting
