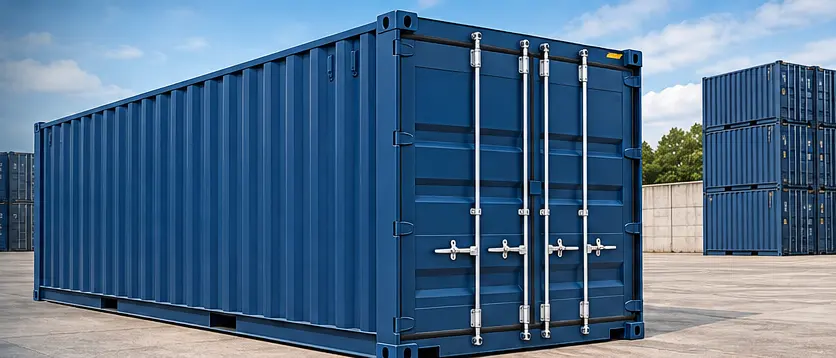

20 ft standard dry container in a container yard

Standard Shipping Containers

Standard Sizes. Practical Possibilities.

Find the container format that fits your storage or project requirements. Compare 20 ft Standard, 40 ft Standard and 40 ft High Cube dry containers, with size-specific dimensions, capacity and technical details.

  • Secure Storage
  • Durable Construction
  • Easy Handling
  • Versatile Applications
View Container SizesRequest for Quotation

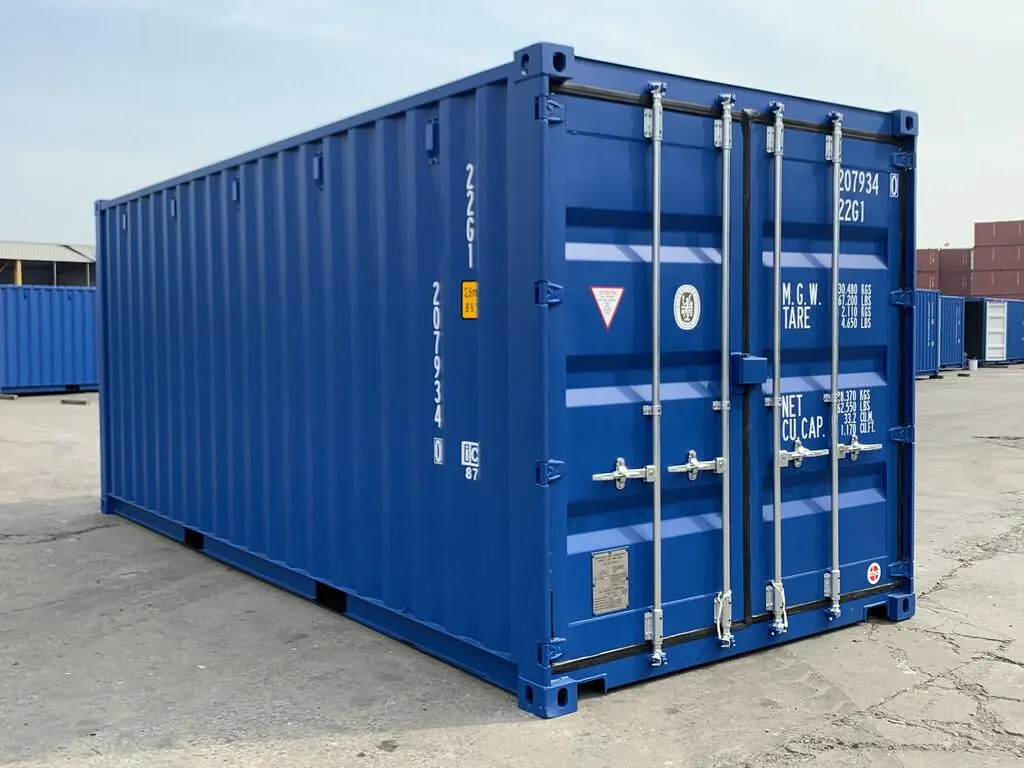

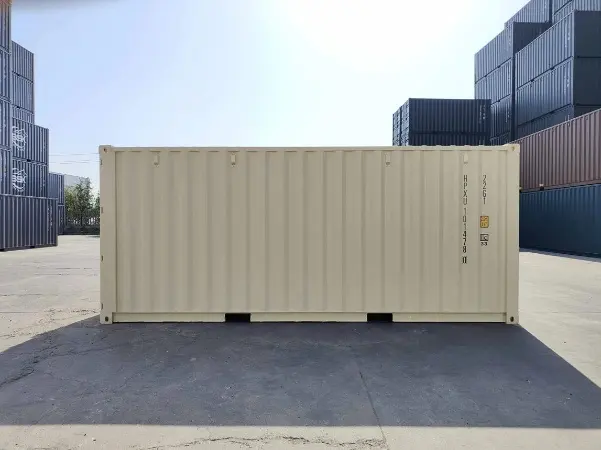

20 ft Standard Dry

Compact Footprint. Enclosed Storage Space.

A 20 ft Standard Dry Container provides an enclosed space for dry materials, tools and equipment. Its shorter length makes it an option where a 40 ft container is not required or where available ground space is limited.

20 ft standard dry container

1 / 4 · 20 ft Standard Dry

Key specifications

ParameterPublished reference specification
Container type20 ft Standard Dry
External length6,058 mm
External width2,438 mm
External height2,591 mm
Internal length5,898 mm
Internal width2,352 mm
Internal height2,393 mm
Door opening width2,340 mm
Door opening height2,280 mm
Internal cubic capacity33.2 m³
Tare weight — design estimate2,100 kg
Maximum gross weight30,480 kg
Maximum payload28,380 kg
Dimensions (mm)
20 ft Standard Dry dimension drawing: side view, front view and door opening

Construction & features

Durable Flooring

Durable Flooring

Marine-grade plywood floor for strength and long service life.

Steel Structure

Steel Structure

Corten or equivalent steel for high durability and weather resistance.

Secure Doors

Secure Doors

Double doors with locking bars and weather seals.

Ventilation

Ventilation

Fitted with ventilators for air circulation.

Additional data (typical)

FeaturePublished reference
Floor strength testFive passes using an ISO-compliant 7,260 kg test vehicle
Stacking weight216,000 kg
Cargo lashing rings10 per side
Lashing bars4 per corner
Ventilators2 total

Common applications

  • Equipment Storage
  • Material Storage
  • Tools & Machinery
  • Construction Sites
  • Industrial Use
  • General Cargo

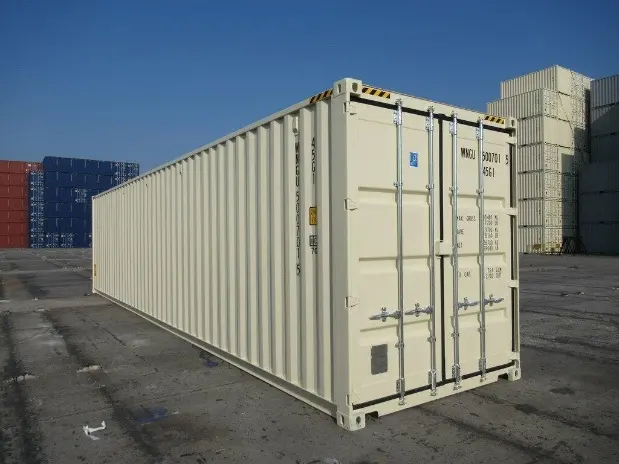

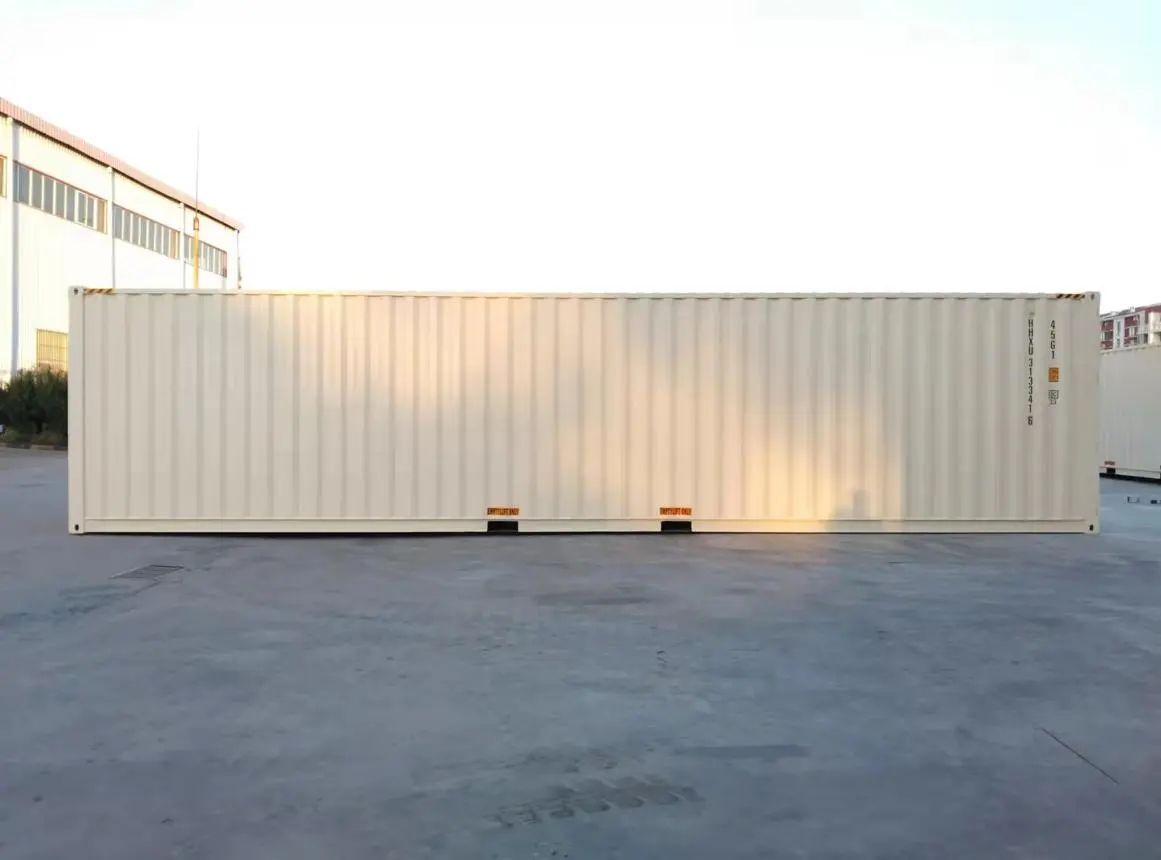

40 ft Standard Dry

More Length. More Enclosed Storage Space.

A 40 ft Standard Dry Container provides a longer enclosed space for dry materials, equipment and general storage requirements. It has the same nominal external width and height as the 20 ft Standard Dry Container, with approximately twice the external length.

40 ft standard dry container

1 / 3 · 40 ft Standard Dry

Built Around Your Space Requirements

A longer standard-height container for enclosed dry storage.

External length
12,192 mm
Internal volume
67.7 m³
External height
2,591 mm
Reference max. gross
32,500 kg

Key specifications

ParameterPublished reference specification
External dimensions — L × W × H12,192 × 2,438 × 2,591 mm
Internal dimensions — L × W × H12,032 × 2,352 × 2,393 mm
Door opening — W × H2,340 × 2,280 mm
Internal volume67.7 m³
Tare weight — design estimate3,540 kg
Maximum gross weight32,500 kg
Maximum payload28,960 kg
Dimensions (mm)
40 ft Standard Dry dimension drawing: side view, front view and door opening

Construction & features

Durable Flooring

Durable Flooring

Marine-grade plywood floor for strength and long service life.

Steel Structure

Steel Structure

Corten or equivalent steel for high durability and weather resistance.

Secure Doors

Secure Doors

Double doors with locking bars and weather seals.

Ventilation

Ventilation

Fitted with ventilators for air circulation.

Additional data (typical)

FeaturePublished reference
Floor strength test7,260 kg (ISO compliant vehicle, 5 passes)
Stacking weight216,000 kg
Cargo lashing rings20 per side
Lashing bars4 per corner
Ventilators4 total

Common applications

  • Equipment Storage
  • Material Storage
  • Tools & Machinery
  • Construction Sites
  • Industrial Use
  • General Cargo

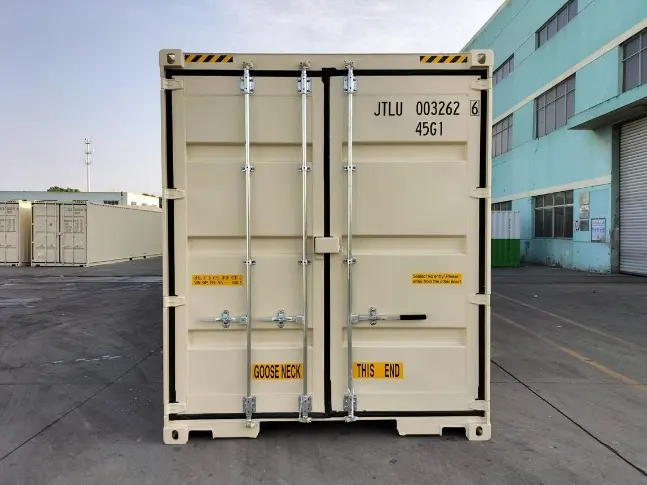

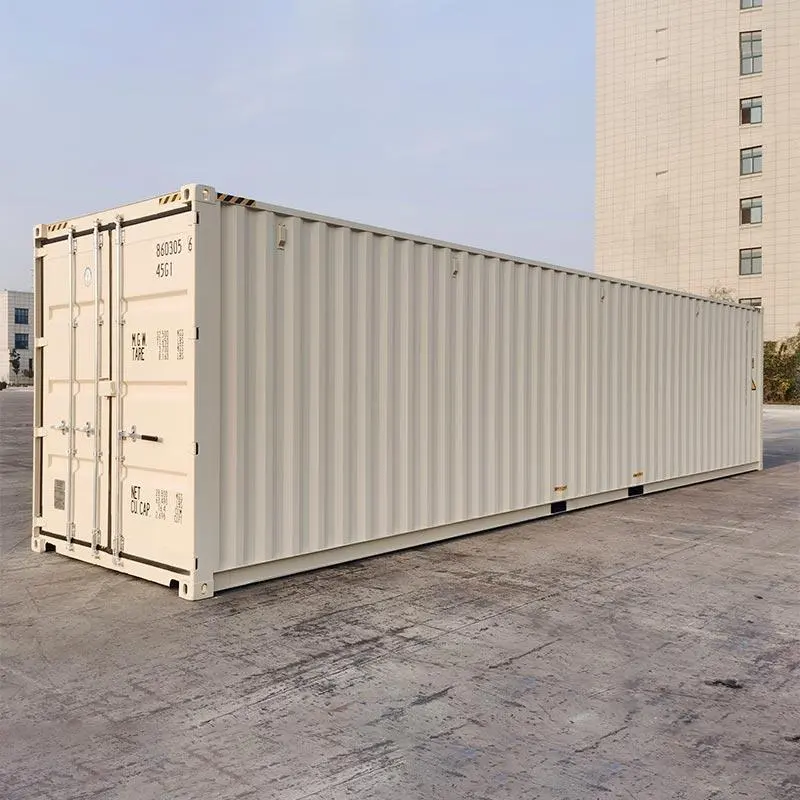

40 ft High Cube Dry

Extra Height. Greater Internal Volume.

A 40 ft High Cube Dry Container offers the same external length and width as a 40 ft Standard Dry Container, with an additional 305 mm of external height. Its taller interior provides more space for suitable dry materials, equipment and storage requirements.

40 ft high cube dry container

1 / 3 · 40 ft High Cube Dry

Key specifications

ParameterPublished reference specification
External length12,192 mm
External width2,438 mm
External height2,896 mm
Internal length12,032 mm
Internal width2,352 mm
Internal height2,698 mm
Door opening width2,340 mm
Door opening height2,585 mm
Internal volume76.4 m³
Tare weight3,700 kg
Maximum gross weight32,500 kg
Maximum payload28,800 kg
Dimensions (mm)
40 ft High Cube Dry dimension drawing: side view, front view and door opening

Construction & features

Durable Flooring

Durable Flooring

Marine-grade plywood floor for strength and long service life.

Steel Structure

Steel Structure

Corten or equivalent steel for high durability and weather resistance.

Secure Doors

Secure Doors

Double doors with locking bars and weather seals.

Ventilation

Ventilation

Fitted with ventilators for air circulation.

Additional data (typical)

FeatureDocumented reference
Floor typePlywood and bamboo
Floor strength testFive passes with a 7,260 kg ISO-compliant test vehicle
Cargo lashing rings10 per rail
Lashing bars5 per post
Ventilators4
Stacking weight216,000 kg

Common applications

  • Equipment Storage
  • Material Storage
  • Tools & Machinery
  • Construction Sites
  • Industrial Use
  • General Cargo

Find the Right Format

Compare Container Sizes at a Glance

Compare the published reference dimensions, internal space and weight ratings of our three featured dry-container formats.

20 ft Standard container

20 ft Standard

33.2 m³

Reference internal volume

40 ft Standard container

40 ft Standard

67.7 m³

Reference internal volume

40 ft High Cube container

40 ft High Cube

76.4 m³

Reference internal volume

Complete technical comparison

All dimensions are in millimetres unless otherwise stated. External and internal dimensions are shown as length × width × height; door opening is width × height.

Specification20 ft Standard40 ft Standard40 ft High Cube
External dimensions6,058 × 2,438 × 2,59112,192 × 2,438 × 2,59112,192 × 2,438 × 2,896
Internal dimensions5,898 × 2,352 × 2,39312,032 × 2,352 × 2,39312,032 × 2,352 × 2,698
Door opening2,340 × 2,2802,340 × 2,2802,340 × 2,585
Internal volume33.2 m³67.7 m³76.4 m³
Tare weight — design estimate2,100 kg3,540 kg3,700 kg
Maximum gross weight30,480 kg32,500 kg32,500 kg
Maximum payload28,380 kg28,960 kg28,800 kg

Which size fits your requirement?

20 ft Standard

Shorter footprint

Consider this format when the available installation length is limited or a shorter enclosed storage unit meets your space requirement.

40 ft Standard

Longer floor space

Consider this format when you need greater internal length and volume without increasing the standard external height.

40 ft High Cube

Additional height

Consider this format when your equipment or storage layout needs more vertical clearance. Its published external height is 305 mm greater than the 40 ft Standard.

Ready to Find Your Container?

Tell Us What You Need.

Share your container size, quantity and intended use. We’ll review your requirement and provide a quotation with the relevant unit details and available documentation.

Request a Quotation

What to include

  • Container size
  • Quantity
  • New or used
  • Intended use
  • Delivery location

Documents to request

  • Unit photographs
  • Actual dimensions and weight markings
  • Condition or inspection records
  • CSC documentation, where applicable
